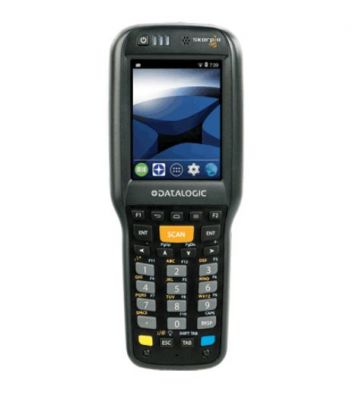

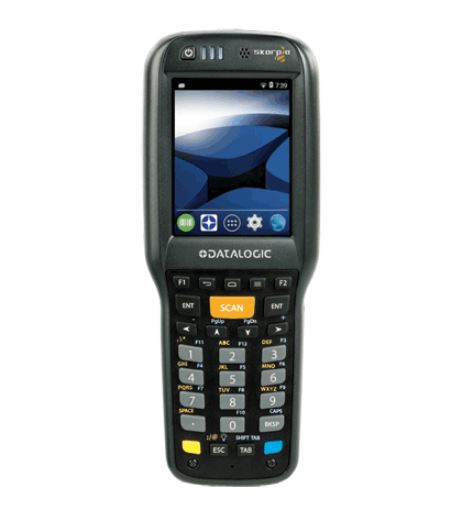

Datalogic Skorpio X4 BT Wifi Std 2D img 28 Key Num And 4.4 Mobile Computer

Datalogic
$2,609.00
(Inc GST)
DLSK4-NS2-BN0A
+

Description

DATALOGIC Skorpio X4 BT Wifi Std 2D img 28 Key Num And 4.4

Skorpio X4 Hand held, 802.11 a/b/g/n MIMO CCX v4, Bluetooth v4, 1GB RAM/8GB Flash, 28-Key Numeric, White Illumination 2D Imager w Green Spot, Android 4.4

Features :

  • Rugged PDA
  • All new/high performance architecture with 3x performance over its predecessor
  • Increased ruggedness: 1.8 m / 6.0 ft drop resistance
  • Choice of Windows Embedded Compact (WEC7) or Android Operating Systems
  • Wi-Fi: 802.11 a/b/g/n with MIMO antennas
  • Bluetooth v4.0 Wireless Technology
  • Full compatibility with Skorpio X3 accessories
  • Choice of 3 keyboard layouts for both WEC7 and Android

Specifications :

Processor : TI OMAP4 @ 1 GHz CPU

Operating Platform : Microsoft Windows Embedded Compact 7 (WEC7) or
Android v4.4*

Development Environment : WEC7:
Datalogic Windows SDK™,
Wavelink® Studio™
MCL-Collection™
Android:
Datalogic Android SDK
Xamarin SDK

Software Utilities : Applications: Pal Application Library pre-licensed (WEC7 only)
CONFIGURATION & MAINTENANCE:
Wavelink Avalanche® pre-licensed (WEC7 only),
42 Gears SureLock pre-licensed for device lockdown (Android only)
SOTI MobiControl
Datalogic xPlatform Utility (DXU) pre-licensed,
Datalogic Desktop Utility (DDU) pre-licensed for device lockdown (WEC7 only)
BROWSER:
SureFox locked web browser pre-licensed for WEC7 and Android models
TERMINAL EMULATION:
Wavelink® Terminal Emulation™ pre-licensed (for Pistol Grip/WEC7 models only)
StayLinked SmartTE (for Android)

Memory : Ram Memory: 1 GB
Flash Memory: 8 GB (partially used for firmware and reserved data, depending on the OS)

Memory Expansion : Micro-SD card slot: Compatible with Micro SD-HC cards up to 32 Gb

Scan Options : 2D IMAGER (STANDARD RANGE) Megapixel sensor for extended range;
White LED Illumination
Optical Resolution: 1D codes: 3 mils, 2D codes: 6.6 mils
Depth of Field (typical): 4.5 to 74 cm (13 mil/EAN), depending on bar code density and type
1D IMAGER 2500 pixel sensor; Sharp green LED scan line
Optical Resolution: 2.5 mils (linear codes)
Depth of Field: 4.0 to 74 cm (13 mil/EAN), depending on bar code density and type

Symbologies supported : Depending on Scan enging used:
1D / LINEAR CODES: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D CODES: Aztec Code, Data Matrix, MaxiCode, PDF417, MicroPDF417, Micro QR Code, QR Code
POSTAL CODES: Australian Post, Japanese Post, KIX Code, Royal Mail, USPS Intelligent Mail, USPS PLANET, USPS POSTNET
GS1 COMPOSITE CODES UPC/EAN/JAN Composites, GS1 DataBar Composites and GS1 128 Composite (Composites supported on WEC7 only)

Keyboards : 28-key Numeric, 38-key Numeric/Function or 50-key QWERTY backlit keyboard

Audio : Wideband Speech (HD Audio) supported on Android

Display : TFT / Transflective LCD with 240 x 320 pixel resolution, LED backlight and integrated touch screen, 3.2 in diagonal

Camera : N/A

I/O Ports : Main connector with USB 2.0 High Speed Host (480 Mbps) and Client, RS-232 up to 115.2 Kbps
microUSB port for power and communications
Ethernet: via single dock (external module) or multi-slot dock

Radio Options : LOCAL AREA NETWORK (WLAN): TI Wi-Link 8, IEEE 802.11a/b/g/n; Frequency Range: Country dependent, typically 2.4 and 5 GHz; Cisco Compatible CCX v4 Security
PERSONAL AREA NETWORK (WPAN): Bluetooth v4 with BLE (Android models); Bluetooth v2.1 + EDR (WEC7 models)

Battery : Removable battery pack with rechargeable Li-Ion batteries.
Standard: 3.7 V; 3000 mAh (11.1 Watt-hours)
Extended: 3.7 V; 5200 mAh (19.2 Watt-hours)
Extended Battery is standard on the Gun Models

Battery Life :

Drop Specification : Withstands drops from 1.8 m onto concrete

Environmental Sealing : IP64

ESD Protection :

Operating Environment : -10 ~ 50°C

Storage Environment : -20 ~ 70°C

EMC/Safety Standards : AGENCY APPROVALS The product meets necessary safety and regulatory approvals for its intended use.
ENVIRONMENTAL COMPLIANCE Complies to EU RoHS
LASER CLASSIFICATION VLD - Class 2 IEC/EN60825-1; Compliant with 21 CFR 1040.10 except for deviations pursuant to laser notice No. 50 dated June 24, 2007.
LED CLASSIFICATION Exempt Risk Group IEC/EN62471

External Dimensions (WxDxH) : Handheld: 193 x 76 x 42 mm (61 x 35 mm at keyboard)
With Pistol Grip: 193 x 76 x 156 mm

Weight : Handheld (with standard battery): 388 g (with extended Battery) 422 g
Pistol Grip (with standard battery): 482 g (with extended Battery) 516 g



Attachments

Brochure (skorpio_x4.pdf, 127 Kb) [Download]
