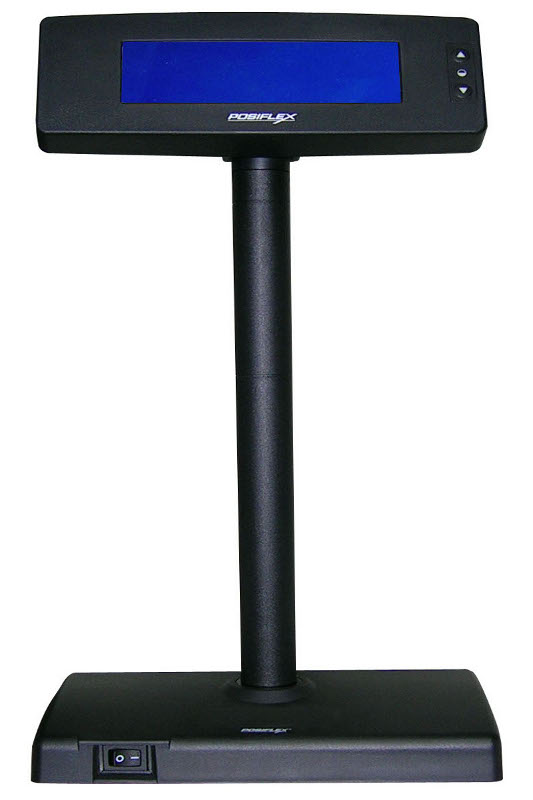

Pole Display : PFPD7610B-R RS232 Interface


$289.00
(Inc GST)
PFPD7610B-R
+

Specifications

Specifications

PF 7600

Display Type

Graphic STN LCD Display Blue BAckgroung with white back light

Display pattern

240 x 64 Dots

Viewing Angle

15, 30 and 45°

Horizontal rotating Angle

Max. 270°

Font Size

4.24(W) x 8.47(H) mm

Character Number

20 x 2 for 5 x 7 font

Character

PD7610 - Simplified Chinese

PD7620 - Traditional Chinese

PD7630 - Arabic, windows code page 01256

Interface

RS-232

Operating Temperature

0 ~ 40 ºC

Operating Humidity

10 ~ 90%

*Specifications are subject to change without notice

Description

The PD-7600 is a stand alone pole mount customer display designed for discrete POS applications. The PD-7600 series utilizes a graphical LCD module with backlight. It supports 4 rows display of 15 Chinese or 30 Arabic characters each in format of 16 by 16 dots or 8 by 16 dots respectively.

Main Features :

  • Graphic STN LCD Display
  • Blue background with white backlight
  • 4 Line display with 15 Arabic or 15 Characters per line
  • The display panel is movable so that it can be adjusted for the best viewing angle.
  • Rotates 270º
  • Adjustable height.
  • RS232 interface
  • Simplified Chinese Character set
  • Supports ESC/POS commands

Attachments

PFPD7610B-R (posiflex_peripherals_brochure.pdf, 2,487 Kb) [Download]
