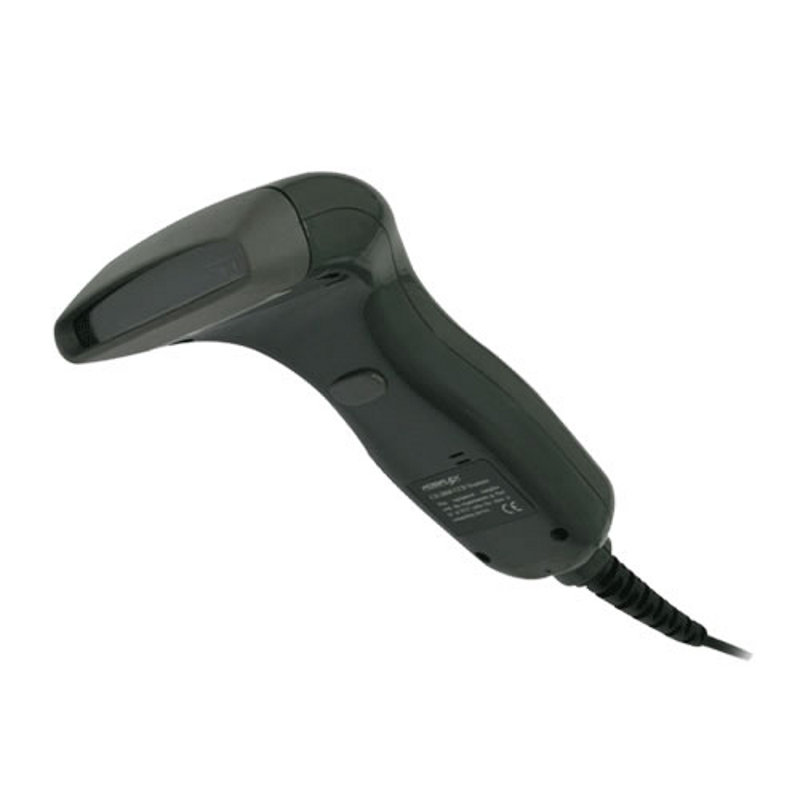

Posiflex PFCD2860B Series Linear Imager Barcode Scanner

[Contact us for a price]
PFCD2860B-K / PFCD2860B-R / PFCD2860B-U



Light source

Visible Red Diode

Scan Rate

100 scan/sec

Depth of Field


Ambient Light

1500 LUX


PS2 Keyboard wedge, Standard RS-232, USB, TTL & Wand emulation

Symbologies supported

ALL UPC/EAN/JAN , Code 39, Code 39 Full ASCII, Code 128, Interleave 25, Industrial 25, Matrix 25, CODABAR/NW7, Code 11, MSI/PLESSEY, Code 93, China Postage, Code32/Italian Pharmacy


DC +5V ±5%

Operating Temperature

0 ~ 40 ºC

Storage Temperature

-20 ~ 60 ºC

Relative Humidity

20 ~ 85% non condensing

Dimensions (H x W x L)

185 x 84 x 40 mm




**Discontinued - Replacement to the CD-3860**

The CD2860 is Posiflex’s low cost handheld scanner, featuring the latest in linear imaging technology. For retail, office, healthcare and light industrial customers looking for a handheld scanner that has premium performance and durability at an affordable price.

Main Features
  • Handheld CCD Scanner
  • Auto discrimination of bar codes
  • Auto upper/lower case
  • Wide reading aperture
  • Reliable and durable, No moving parts
  • All models pass drop test with 1.5 meter height
  • Developed with operator comfort in mind
  • Lightweight, ergonomic design
  • Available in Ivory and Black


PFCD2860B Series-Brochure (posiflex_scanner_brochure.pdf, 417 Kb) [Download]
