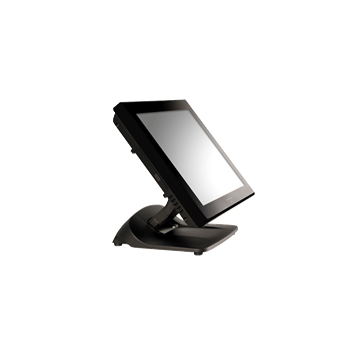

POSIFLEX XT3815 J1900 Q Core 4G 120G SSD PCAP no OS TOUCH SYSTEM

Posiflex
$1,688.00
(Inc GST)
XT3815A0369200FJ
+

Description

POSIFLEX XT5515 i5 4GB 2x64GB SSD GEN7 POSR7 64 bit

XT-5515 15" Bezelfree LCD touch (PCAP) terminal (1024*768) with Intel Haswell i5-3.3GHz (4M Cache), 4GB DDR3, 2 x 64GB SSD, with 7th GEN Base, POSReady 7 Preloaded 64 Bits

Features :

  • PC POS Touch System
  • Projective Capacitive Touch screen (PCAP)
  • 15" LCD 1024 x 768 resolution
  • Spill-resistant design (IP44 capable) to prevent careless spill and provide easy cleaning for a wide range of applications
  • Intel J1900 Quad Core CPU up to 2.42 GHz 2M Cache and DDR3L memory
  • Fan-free design boasting quiet and anti-dust features
  • Aluminium die-cast housing design for efficient cooling
  • RAID 1 (Disk Mirroring) support to backup important data (Optional)
  • Push-open cover to protect power switch from accidental shutdown
  • New Gen 7 Slim line Base (Patent pending)
  • Optional Gen 8 slim base, which can have build in Power supply and Powered USB Modules



Specifications :

CPU : Intel Core i5-4570TE 2.7GHz 4M Cache (Standard config. in Australia)
Intel Core i7-4770TE 2.3Ghz 8M Cache

Memory : DDR3 1333MHz, SO-DIMM socket x 2, max 16 GB, default 4 GB

Storage device(s) : In Australia Standard with 32 GB SSD, can also be purchased with a 320 GB SATA HDD (Special Order) or larger SSD Drives

Display : 15" TFT LED Backlit LCD Display

Resolution : 1024 x 768

Tilt Angle : 15° to 90°

Touch Panel : Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch

I/O Ports : 6 x RS-232 Ports (2 x DB9, 2 x 10 pin RJ50 on I.O Plate) pin header x 2 from service window, with 5V/12V Support
6 x Standard USB Ports
2 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x mini-PCLe internal expansion slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x UPS Port (Battery is optional)
Optional Parallel port with Proprietory cable
Optional powered USB Ports, 1 x 24V and 3 x 12V via GEN8e Base

Audio : 2W Speaker Internal x 1 + Line-out

OS Support : Windows 7 / POSReady 7 / Linux per request

Environmental Sealing : N/A

Operating Environment : 0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD

Storage Environment : -20 ~ +70 °C, 10 ~ 90% RH

Power Supply : 12V DC Power Adapter
(Optional 120W when equiped with 2nd Display)
(Optional 150W when equiped with Gen 8 Base with Powered USB I/F)

External Dimensions (WxDxH) : 372mm x 320mm x 252.7mm

Weight : 5.86 Kg



Attachments

Brochure (XT3815.pdf, 773 Kb) [Download]
