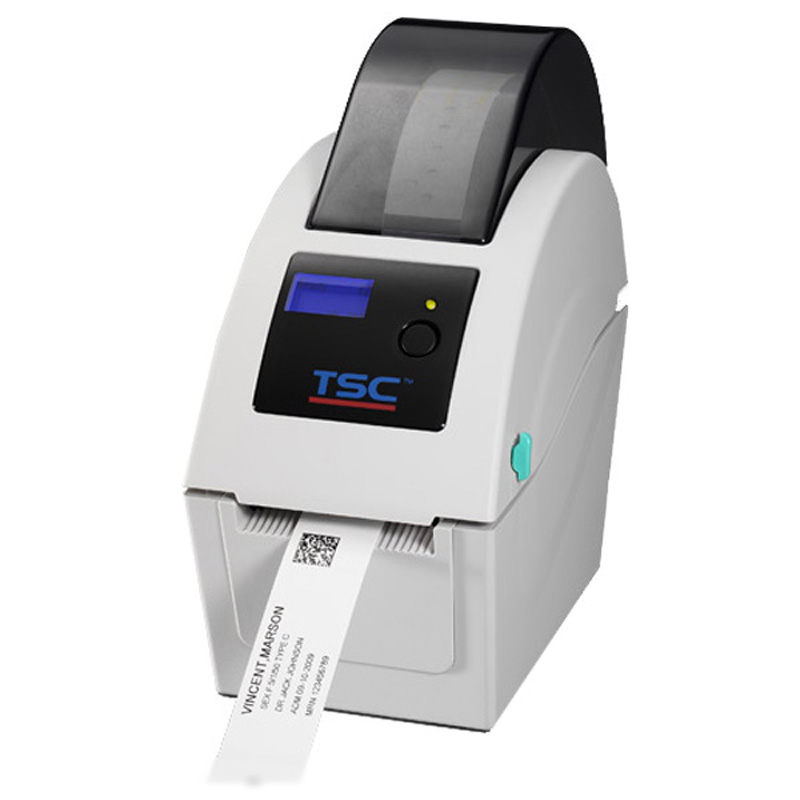

TSC TDP-225W Wristband USB+Ethernet Direct Thermal Label Printer

[Contact us for a price]


TSC TDP-225W Direct Thermal Wristband Printer, USB and Ethernet interface, white.One of the latest additions to TSC’s line of world-class desktop printers, the TDP-225W wristband label printer is custom-designed for patient ID and entertainment ticketing.
The TDP-225W, which can be wall-mounted, features an LCD printer-status display and offers USB 2.0 and Ethernet connectivity. Unlike other direct thermal printers, it is extremely compact, while supporting full 6.5-inch OD wristband rolls. Its spring-loaded center-biased wristband holder accommodates standard 1-inch-core that is common to full 6.5-inch OD rolls sold by major wristband manufacturers.
The TDP-225W can be optionally configured to print wristbands in the event of a computer failure by retrieving its stored wristband printing program and entering and printing patient or customer information from a PC keyboard.
The TDP 225W features a small footprint that supports a full 6.5" OD roll of wristbands straight out of the box. The easy-to-use design provides a spring-loaded centre justified wristband holder that supports a 1" core that is common to rolls sold by major wristband manufacturers.
Key Features
  • Designed to hold 6.5 inch OD wristbands
  • Front LCD display
  • High quality double-walled clamshell design
  • Easy media loading
  • Up to 127 mm (5") per second print speed
  • SD Flash memory expansion up to 4 GB
  • Ethernet and USB 2.0 connectivity
  • Optional peel-off module, cutter module and down-time keyboard interface
  • With 24 Months Manufacturer Warranty.


Brochure (TDP-225W.pdf, 370 Kb) [Download]

Specification (TDP-225W_Specification.pdf, 253 Kb) [Download]
